GaN Chargers

Advanced Gallium Nitride (GaN) technology for high efficiency (up to 94%) and ultra-compact designs.

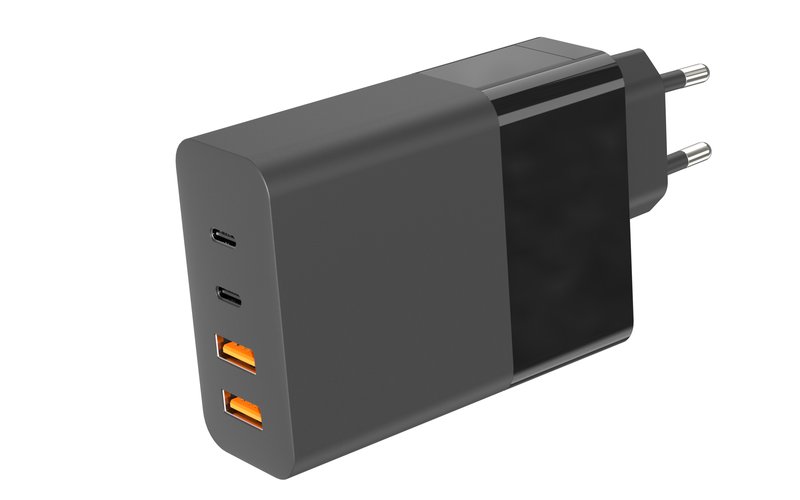

100W 2C2A EU Plug

Model: GSGaN100W2C2A
Input 100: 240V 50/60Hz. 2A Max Output C1/C2: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A (100W max)
Output: A1/A2: 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A (30W max)
type: C1+type-C2+USB-A1+ USB-A2: 65W+18W+7.5W+7.5W

CERohsERP

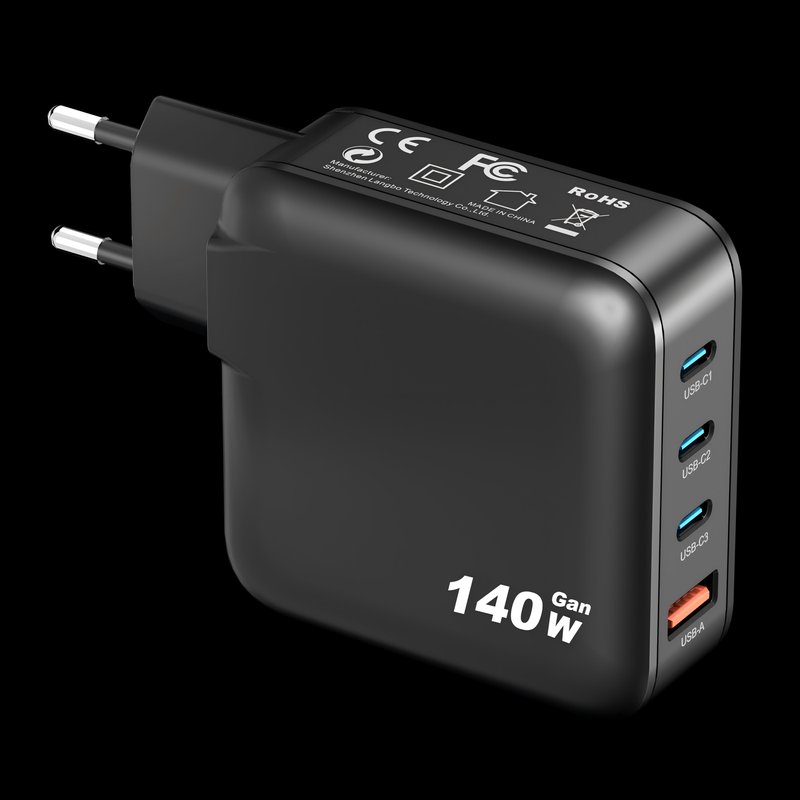

140W GaN

Input 100: 240V 50/60HZ 1.8A MAX Output C1/C2:5V3A,9V3A,12V3A,15V3A28V5A,(PD3.1)(100W MAX)
Output C3: 5V3A,9V3A,12V3A,15V3A,20V3.25A(65W MAX)
PPS1 5: 20V/5A(100W MAX);PPS2:5-11V/5A,5-21V/3A(65W MAX) Output A 5V3A,9V3A,12V3A,15V3A,20V1.5A 30W Max Output C1+C2/C1+C3/C2+C3/C1+A/C2+A:100W+30W Output C3+A 5V3A Output C1+C2+C3/C1+C2+A:65W+30W+20W Output C1+C3+A/C2+C3+A:65W+5V3A Output C1+C2+C3+A:65W+30W+7.5W+7.5W Certification CCC CE FCC ROHS UL CE-LVD UKCA With PFC Feature Color Black&White

30W GSMNYKL30W1C

Model: GSMNYKL30W1C
Input AC 100: 240V~50/60Hz
Output C: PD30W 5V-3A, 9V-3A, 12V-2.5A, 15V-2A

45W GSGaNLT45WAC

Model: GSGaNLT45WAC
Input: 100-240V 50-60Hz 1.2A Max
Output C1: 5V3A/9V3A/12V3A/15V3A 20V2.25A (45W max)
Output A: 5V3A/9V2.22A/12V1.67A (20W max)

CERoshERPFCCETLBIS

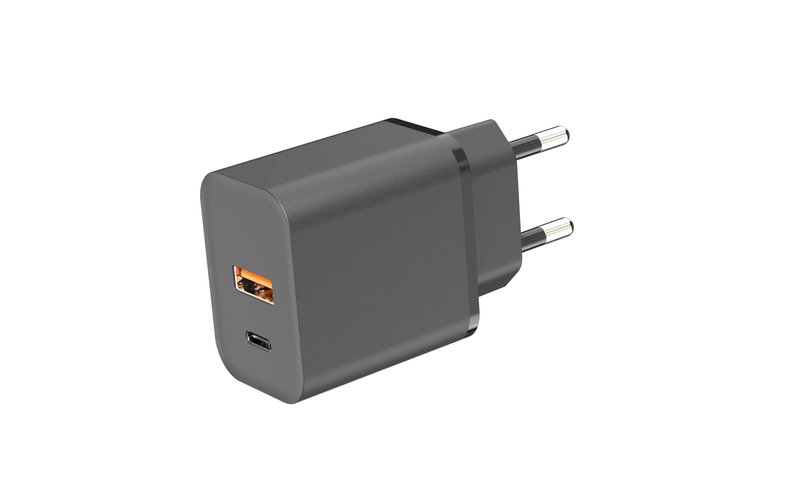

45W EU Plug A+C

Model: GSGaNL45WAC
Input: AC 100-240V 50/60Hz 1.2A
Output C1: 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A (45W)
Output A: 5V3A, 9V1A, 12V1.5A 18W QC3.0

45W UK Plug Single Type-C

Model: GSGaNSAM45WC
Input: AC 100-240V;50/60Hz; 1.2A Max
Output C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
PPS: 3.3-11V/3A; 3.3-16V/3A

60W Single Type-C Dynamic Fast Charge

Model: GSCCWC60W
Input: AC 100-240V 50/60Hz 2A Output: 5V3A,9V3A,12V3A,15V3A,20V3A(Max60W)
PPS: 5~21V/3A(Max 63W)

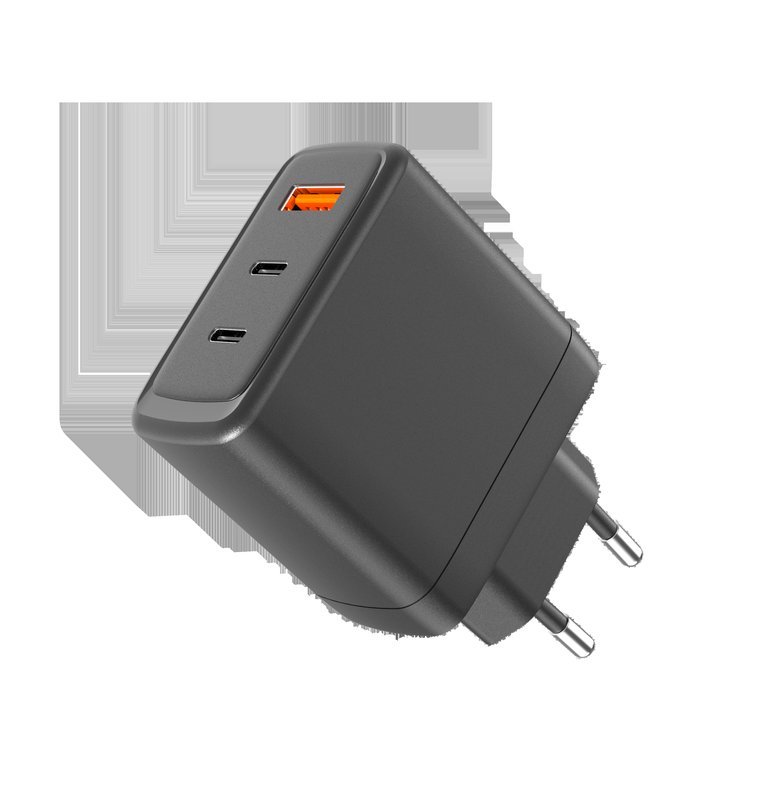

65W 2C1A D EU Plug

Model: GSGaNDPD65W2C1A
lnput: 100-240V 50/60Hz 1.5A
Output Type: C1/C2:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W)
Outout USBA: 5V-3A,9V-2A,12V=1.5A(18W Max)
Type: C1+(C2+USB): 45W+5V2.4A

CERohsFCCERPAntel

65W 2C1A EU Plug

Model: GSGaNLTPD65W2C1A
Input: 100-240V AC-50/60Hz
Output C1: 5V/3A, 9V/3A, 12V/3.A, 15V/3A, 20V3.25(65W)
Output C2: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V1.5(30W)
Output USBA: 5V/3A, 9V/2A, 12V/1.5A(QC3.0 18W)

65W A+C EU Plug

Model: GSGaNLCPD65WAC
Input: 100-240V AC-50/60Hz/ 1.2A
Output A: 5V/3A, 9V/2A;12V/1.5A (QC3.0 18W) Output C 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A
PPS: 3.3-11V 5A

KCCEERP

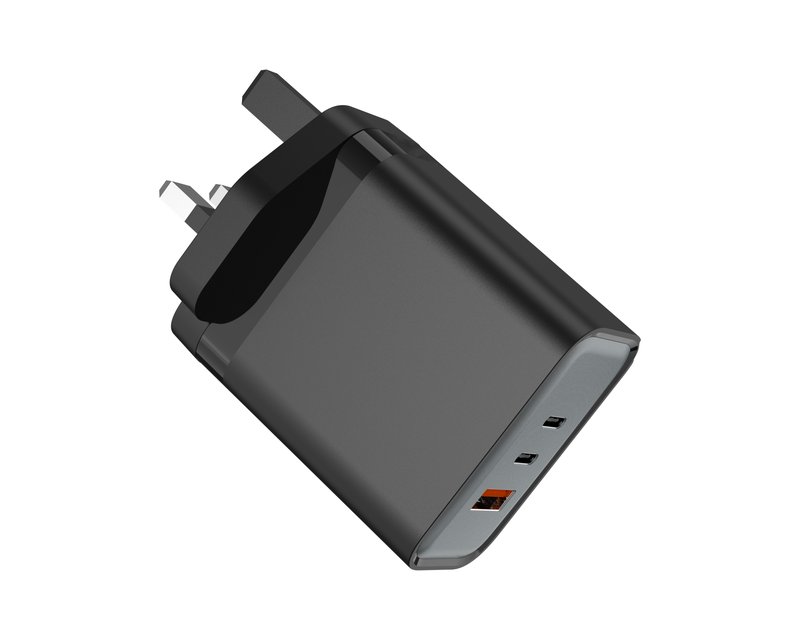

65W GaN Charger UK Plug

Model: GSGaNFI65WAC
Input AC 100: 240V~50/60Hz 0.2A
Output C1: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A (65W)
Output C2: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A (65W)
Output USBA: 5V-3A, 9V-3A, 12V-1.5A (18W) Output C1+C2: 45W+20W Output C1/C2+USBA: 45W+18W Output C1+C2+USBA: 45W+10W+10W

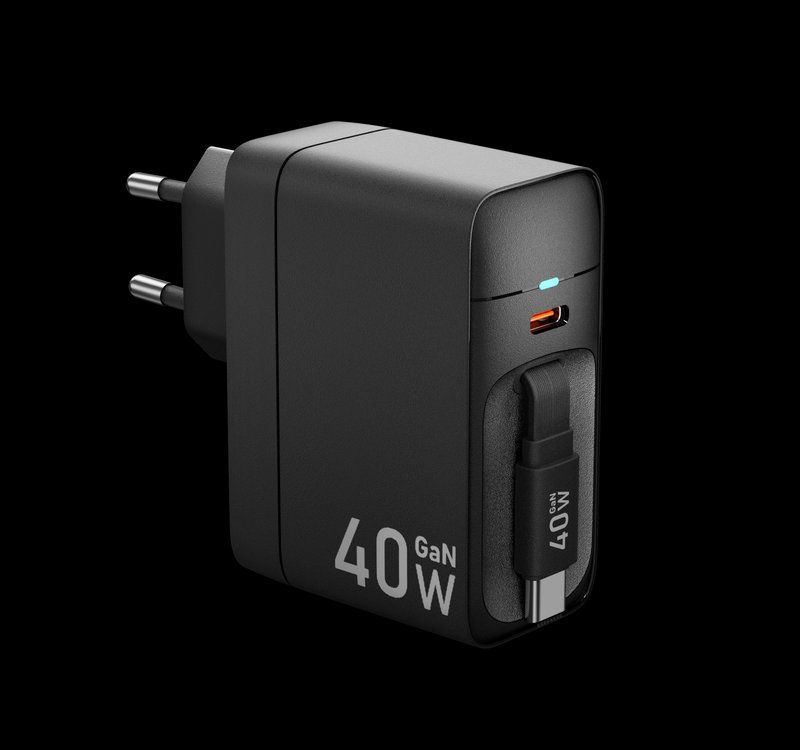

New 40W GAN

Input: 100-240V 50/60Hz 1.2A Max Output (PD40W)
USB: C1+USB-C2:20W+12W
TOTAL: 40W max

CEFCCCBRohs

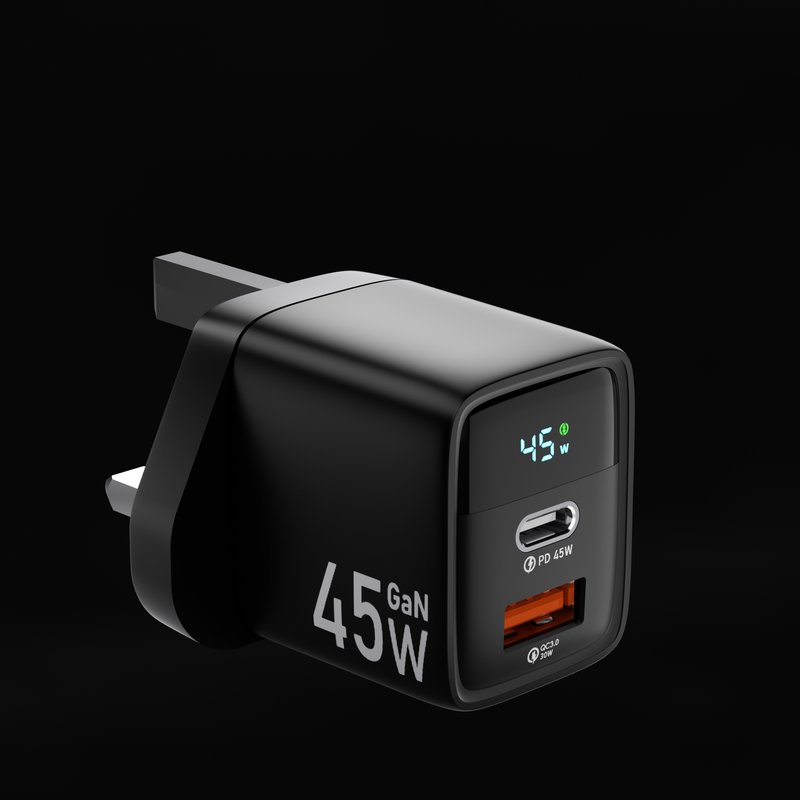

New 45W GAN

Input 110: 240VAC 50/60Hz 1.7A Max
Output C: 45W Max
Output A: 18W

CEFCCCBRohs

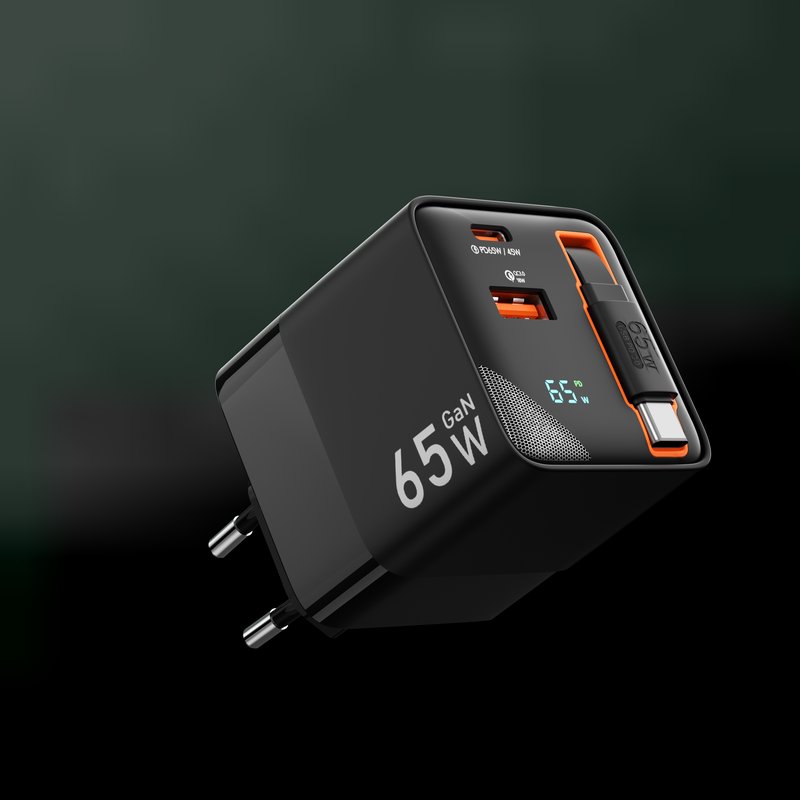

New 65W GaN

Input 110: 240VAC 50/60Hz 1.7A Max Output Cable is C1, USB C2 C1/C2 5V/3A 9V/3A 12V/3A 15V/3A 20V/3.25A A 5V/3A 9V/3A 12V/3A 20V/3A C1+C2 45+20W C1+A 45+18W C2+A 5V3A C1+ C2+A): 45W+15W

CEFCCCBRohs

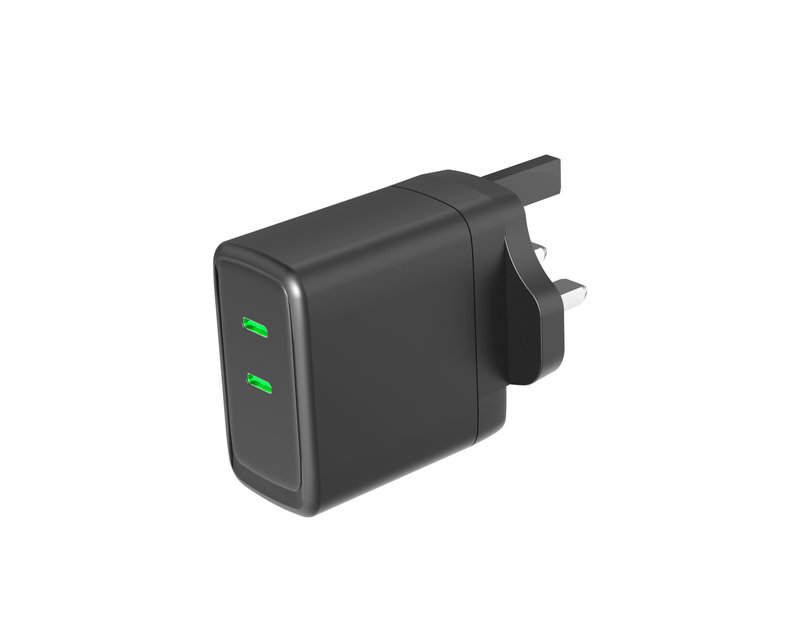

PD 45W GaN Charger UK Plug

Model: GSGaNDPD45W2C
lnput: 100-240V 50/60Hz 1.2A
Output Type: C1/C2: 5V/3A,9V/3A,12V/3A,15V/3A,20V/2.25A (45W)
PPS: 3.5-5.9V/3A,3.3-16V/2.8A
Type: C1+Type-C2: 25W+20W

CERohsFCCERPAntel

PD 45W GaN Charger UK Plug White

Model: GSGaNL45WAC
Input AC 100: 240V~50/60Hz 0.4A
Output C: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-2.25A (45W )
Output USBA: 5V-3A, 9V-2A, 12V-1.5A Output C+USBA: 5V-4A (20W)

CERohsFCC

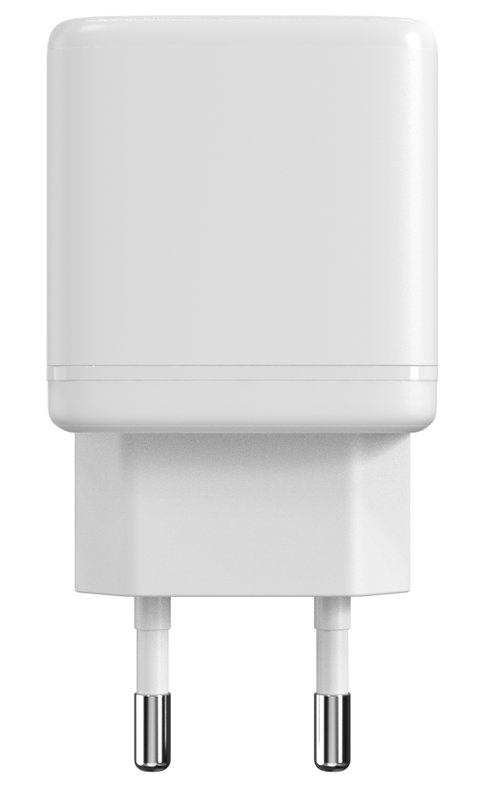

PD20W Single Type-C A+C EU Plug

Model: GSPD20WC01
Input AC 100: 240V~50/60Hz
Output: PD20W 5V-3A 9V-2.22A 12V-1.67A

CERohsFCCAntel

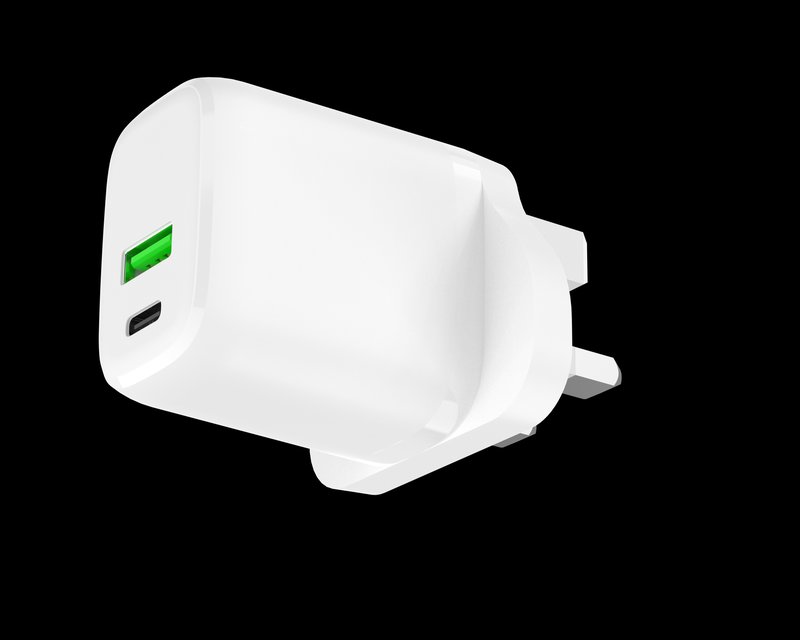

PD30W A+C UK Plug

Model: GSGaNPD30WAC
Input: AC 100V-240V,50/60Hz
Output C: 5V/3A,9V/3A,12V/2.5A 15V/2A,20V/1.5A
Output A: 5V/3A,9V/2A,12V/1.5A

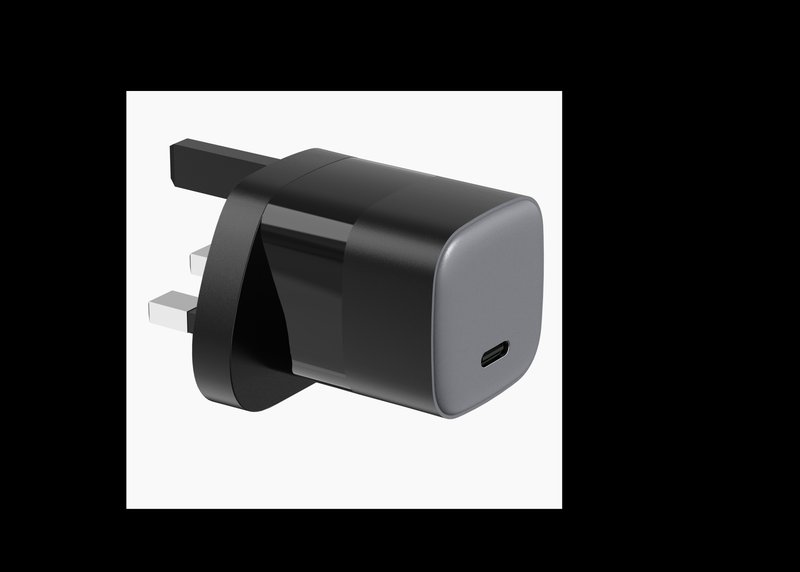

PD30W Single Type-C UK Plug

Model: GSGaNPD30WC
Input AC 100: 240V~50/60Hz
Output C: 5V-3A, 9V-3A, 12V-2.5, 15V-2A, 20V-1.5A PD30W
lnput: 100-240V 50/60Hz Output Type C 5V3A 9V3A; 12V2.5A 20V1.5A 30W

PD30W Single Type-C EU Plug

Model: GSTCPD30WC
Input AC 100: 240V~50/60Hz
Output: PD30W 5V-3A, 9V-3A, 12V-2.5A, 15V2A, 20V1.5A

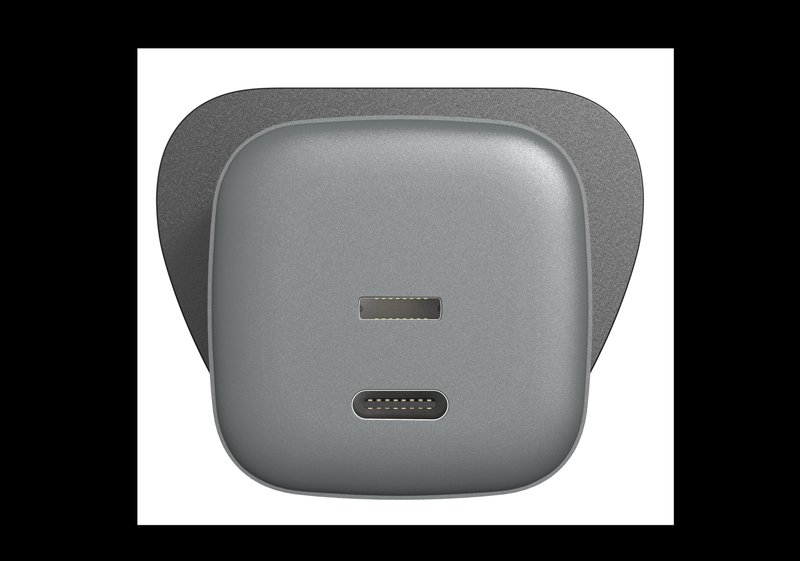

PD33W L+C UK Plug

Model: GSGaN33WLC
Input: AC 100-240V~50/60Hz 0.8A Max
USB: C1+USB-L1: 5V3A
PPS: 3.3-11V 3A 33W MAX

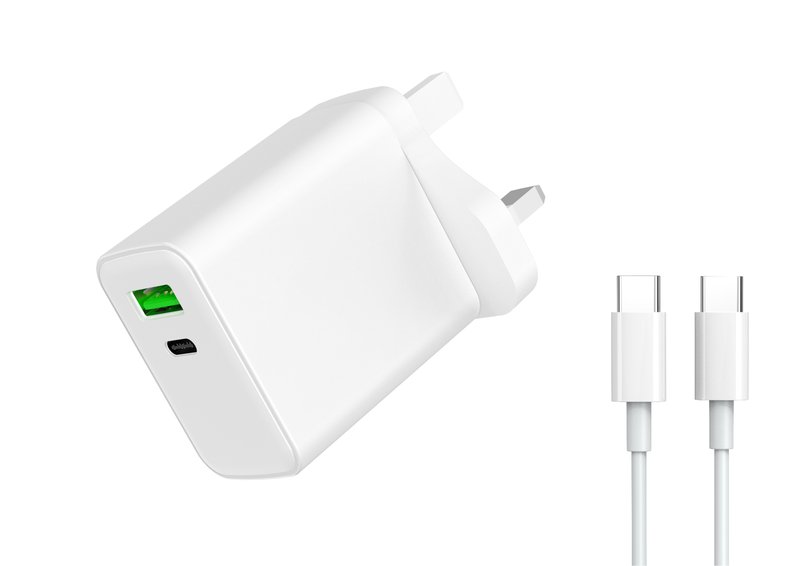

PD45W A+C UK Plug

Model: GSGaN45WAC
Input: AC 100-240V 50/60Hz 1.2A
Output C1: 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A (45W)
Output A: 5V3A, 9V1A, 12V1.5A 18W QC3.0

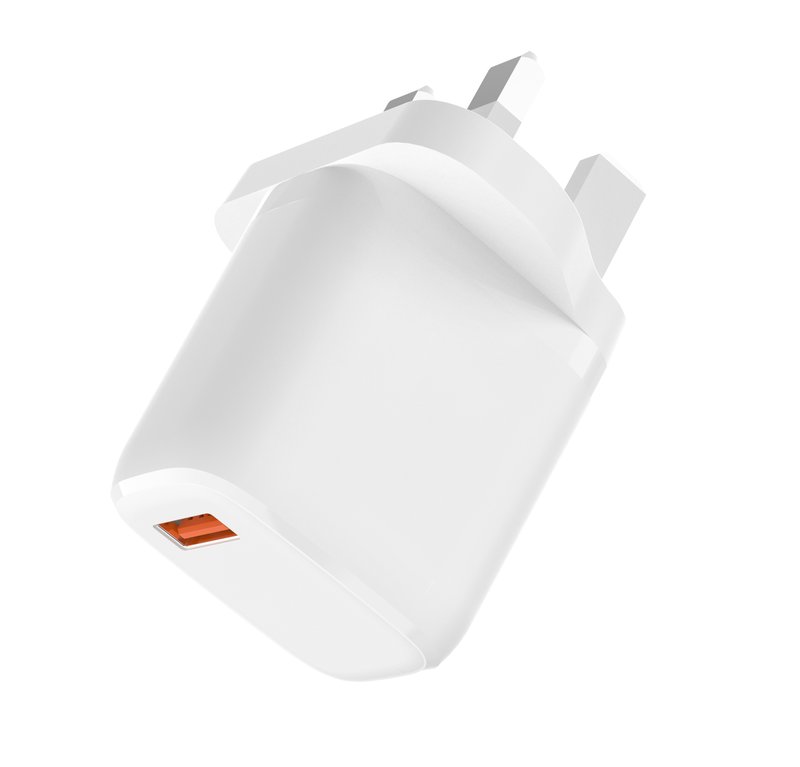

QC18W A

Model: GSQC18WA
Input: AC 100-240V 50/60Hz
Output A: 5V3A, 9V1A, 12V1.5A 18W QC3.0

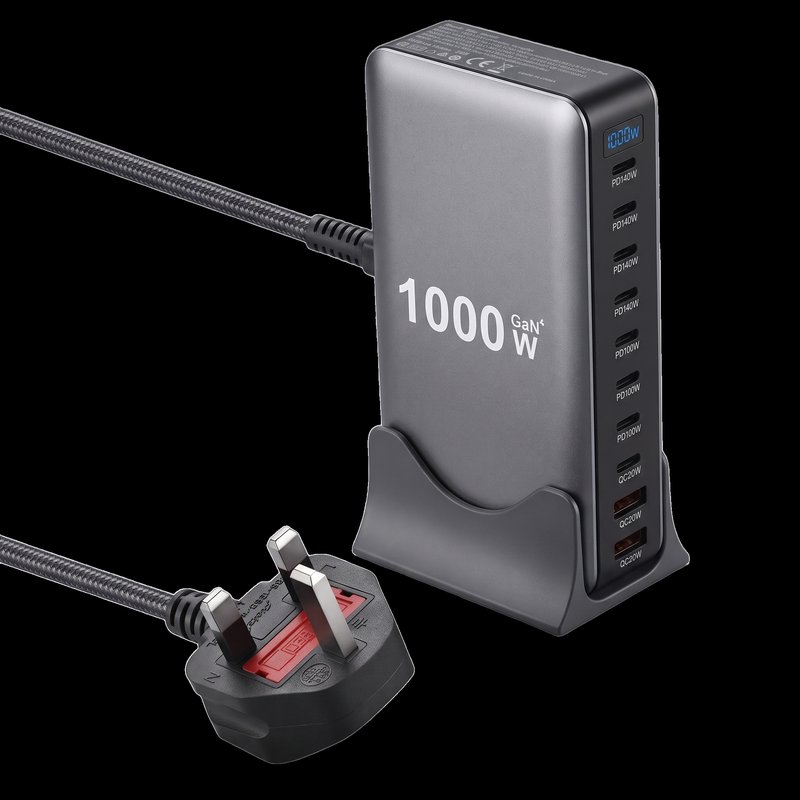

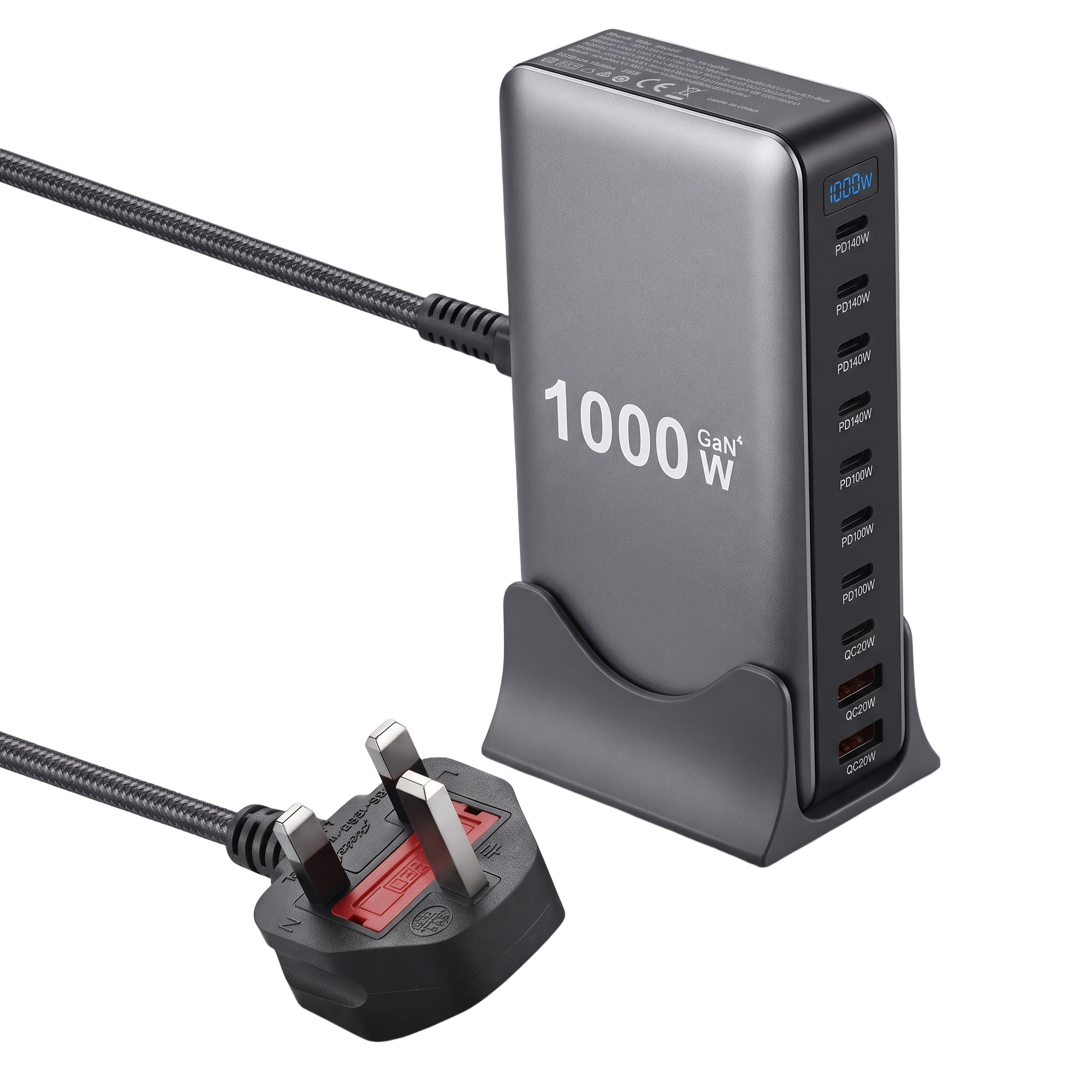

1000W 8C2A UK

Input: 110-240V~50/60Hz 1.4A
Output PD1: 5V3A 9V3A 12V3A 15V3A 28V5A 140W Max
Output PD2: 5V3A 9V3A 12V2.5A 15V2A 28V5A 140W Max
Output PD3: 5V3A 9V3A 12V2.5A 15V2A 28V5A 140W Max
Output PD4: 5V3A 9V3A 12V2.5A 15V2A 28V5A 140W Max
Output PD5: 5V3A 9V3A 12V3A 15V3A 20V5A 100W Max
Output PD6: 5V3A 9V3A 12V3A 15V3A 20V5A 100W Max
Output PD7: 5V3A 9V3A 12V3A 15V3A 20V5A 100W Max
Output PD8: 5V3A 9V3A 12V3A 15V3A 20V5A 100W Max
Output A1: 5V3A 9V2.22A 12V1.67A
Output A2: 5V3A 9V2.22A 12V1.67A
Feature: 8C + 2A UK PIN

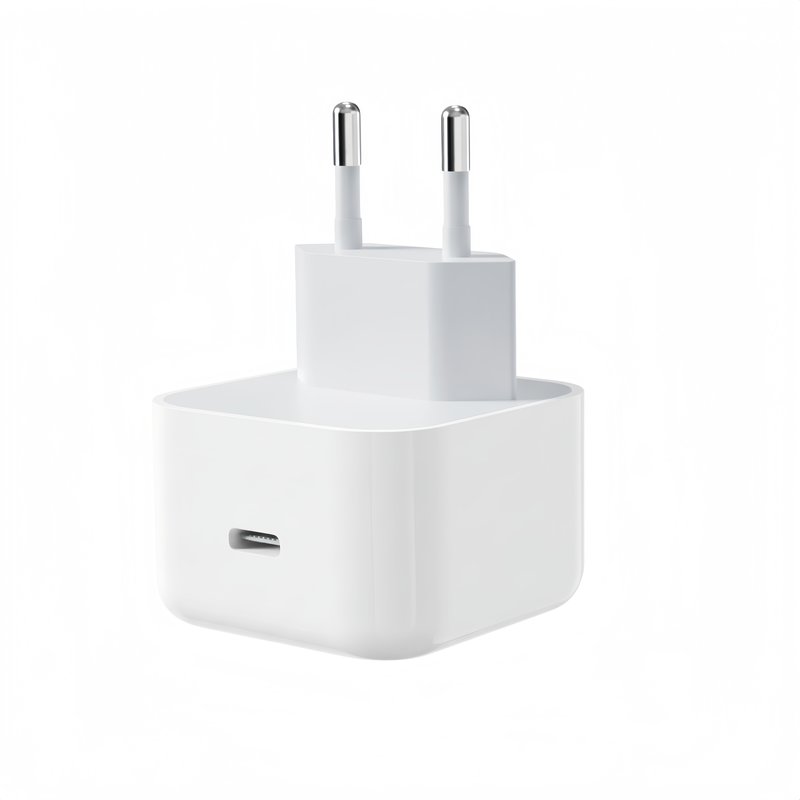

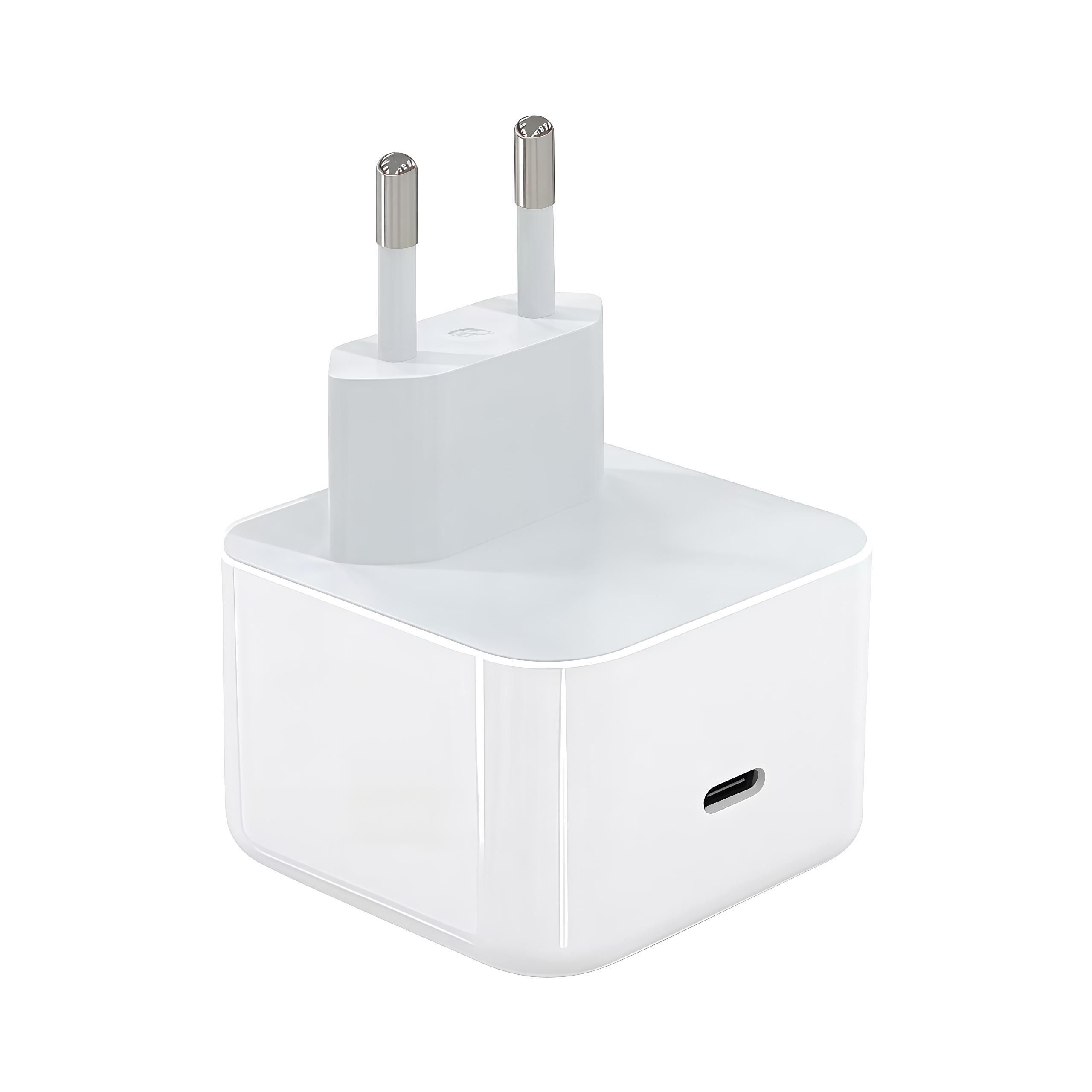

40W Fast Charger Series EU Plug

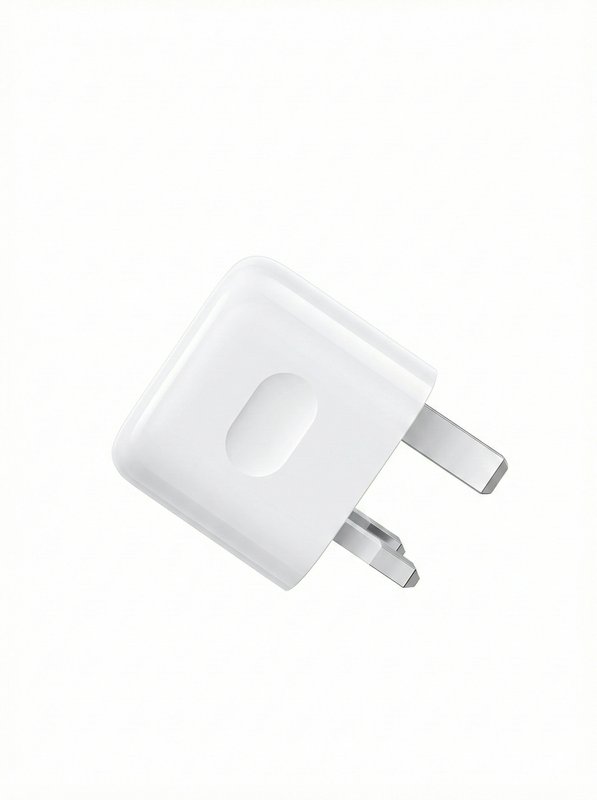

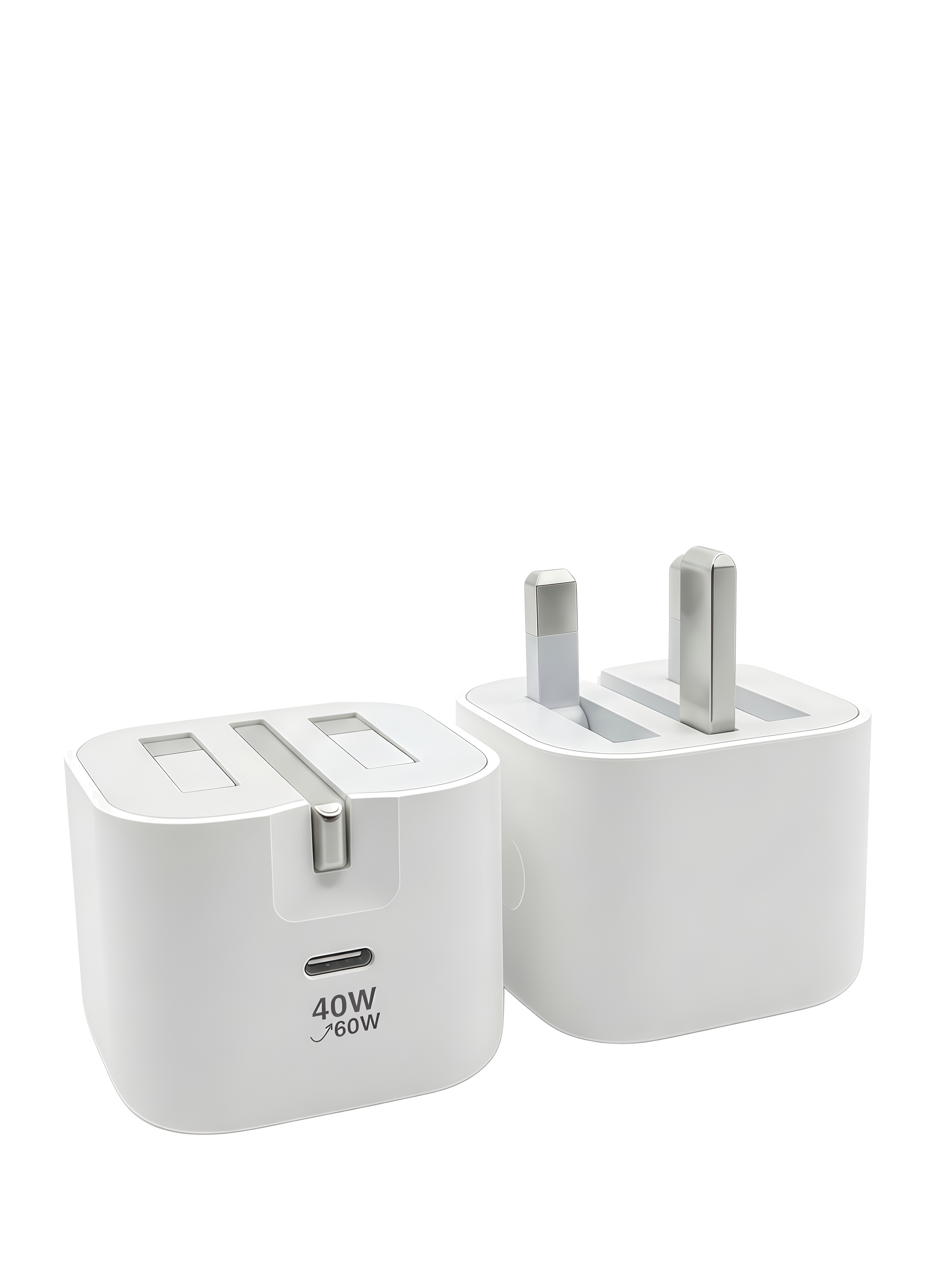

40W Fast Charger Series UK Plug

Input: 100-240V~50-60Hz 1.5A(USB PD)
Output: (AVS) 15.0-20.0Vm 2.0A[3.0ADPS] or (AVS)9.0-15.0V=2.67A[3.0A DPS] or 9.0Vm3.0A or 5.0Vm3.0A

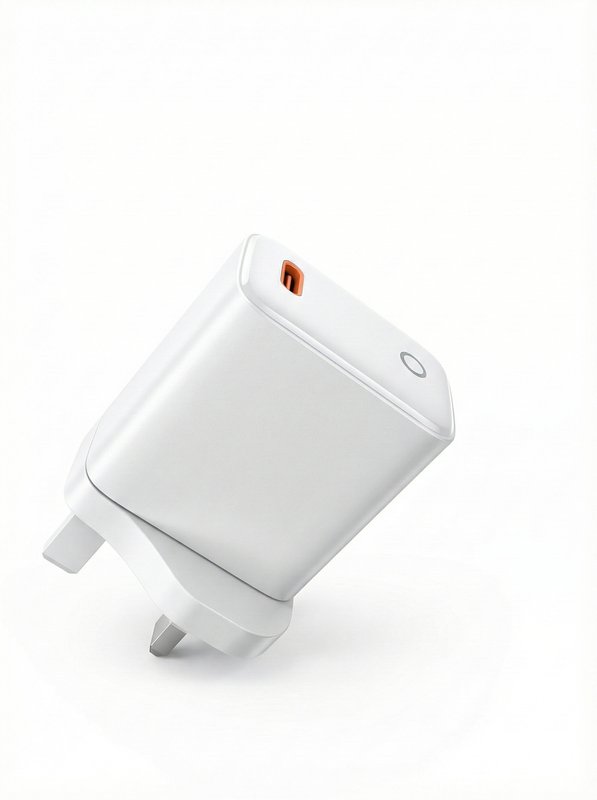

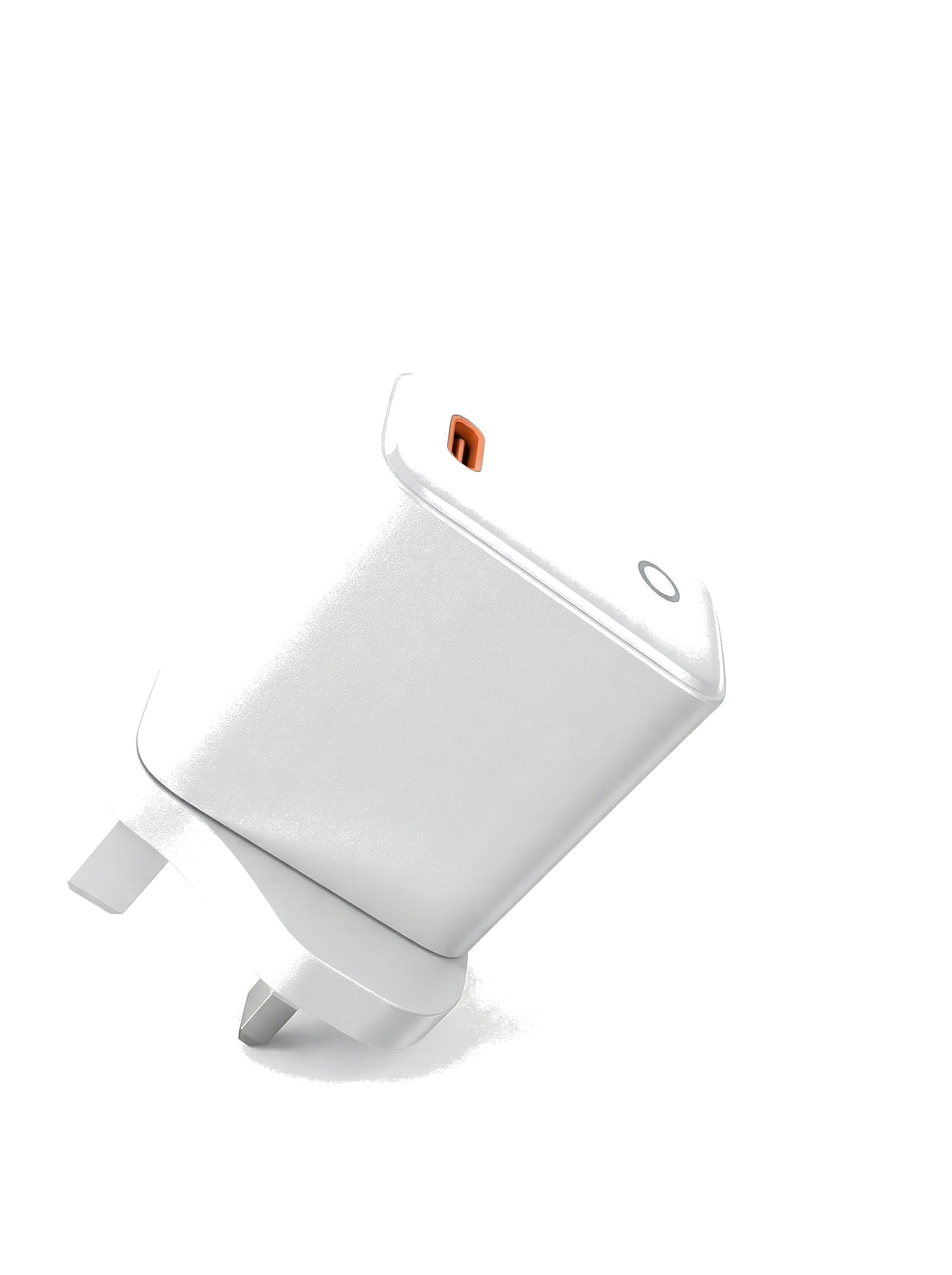

45W UK Plug Single Type-C LED

Input 100: 240V~50/60Hz 1.2A Max
Output C: 5V-3A, 9V-3A, 15V-3A, 20V-2.25A (45W )
PPS: 3.3-11V/ 4.05A

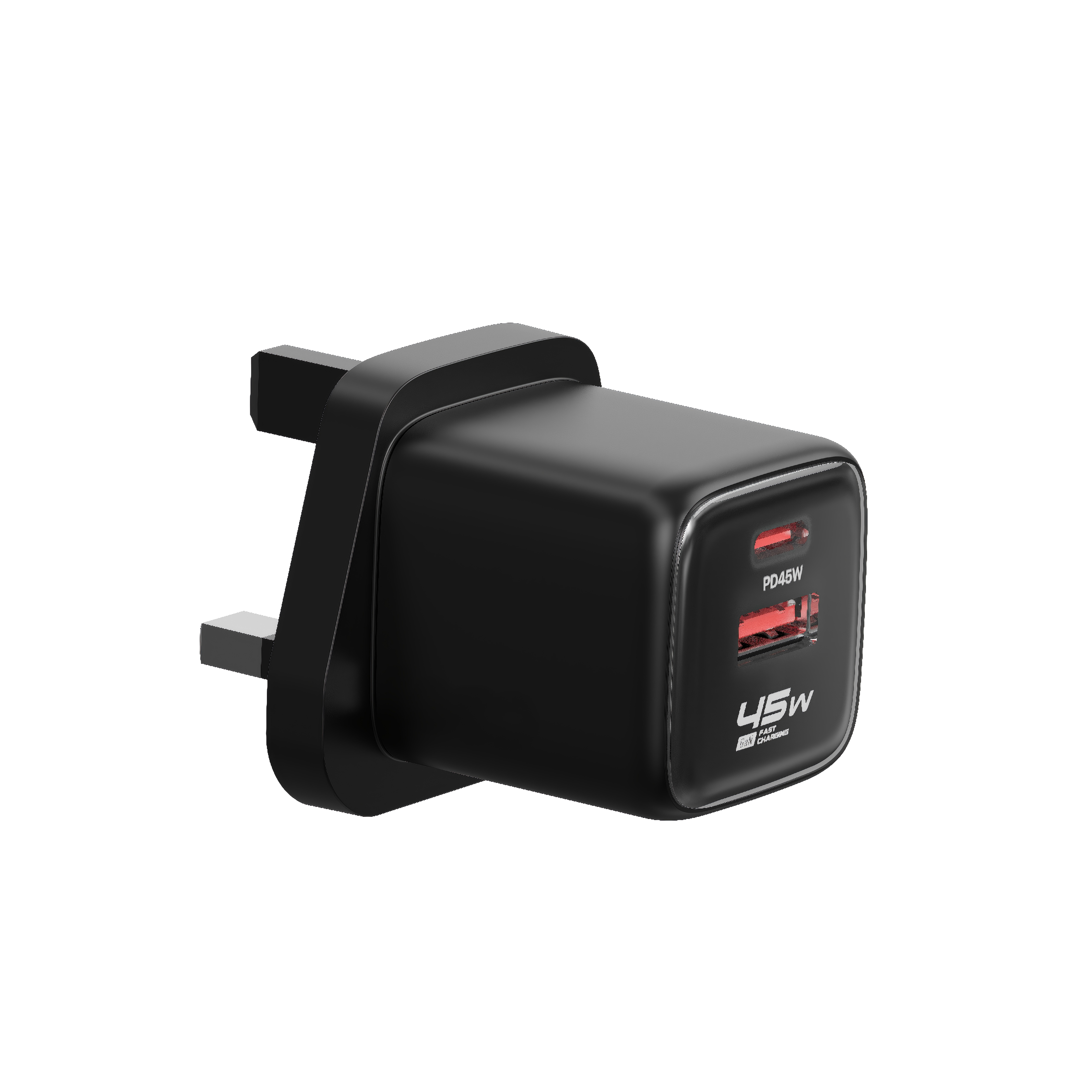

45W UK Plug Acrylic ShellA+C

Model: GSWC45W01
Input: 110-240V~50/60Hz,0.8AMax
Output Type: C:5V3.0A,9V-3.0A,12V-3.0A,
15V: 3.0A,20V--2.25A(45W Max)
Output USB: A:5V-3.0A,9V-2.0A,12V-1.5A(18W Max)
OutputType: C+USB-A:5V-3.0A

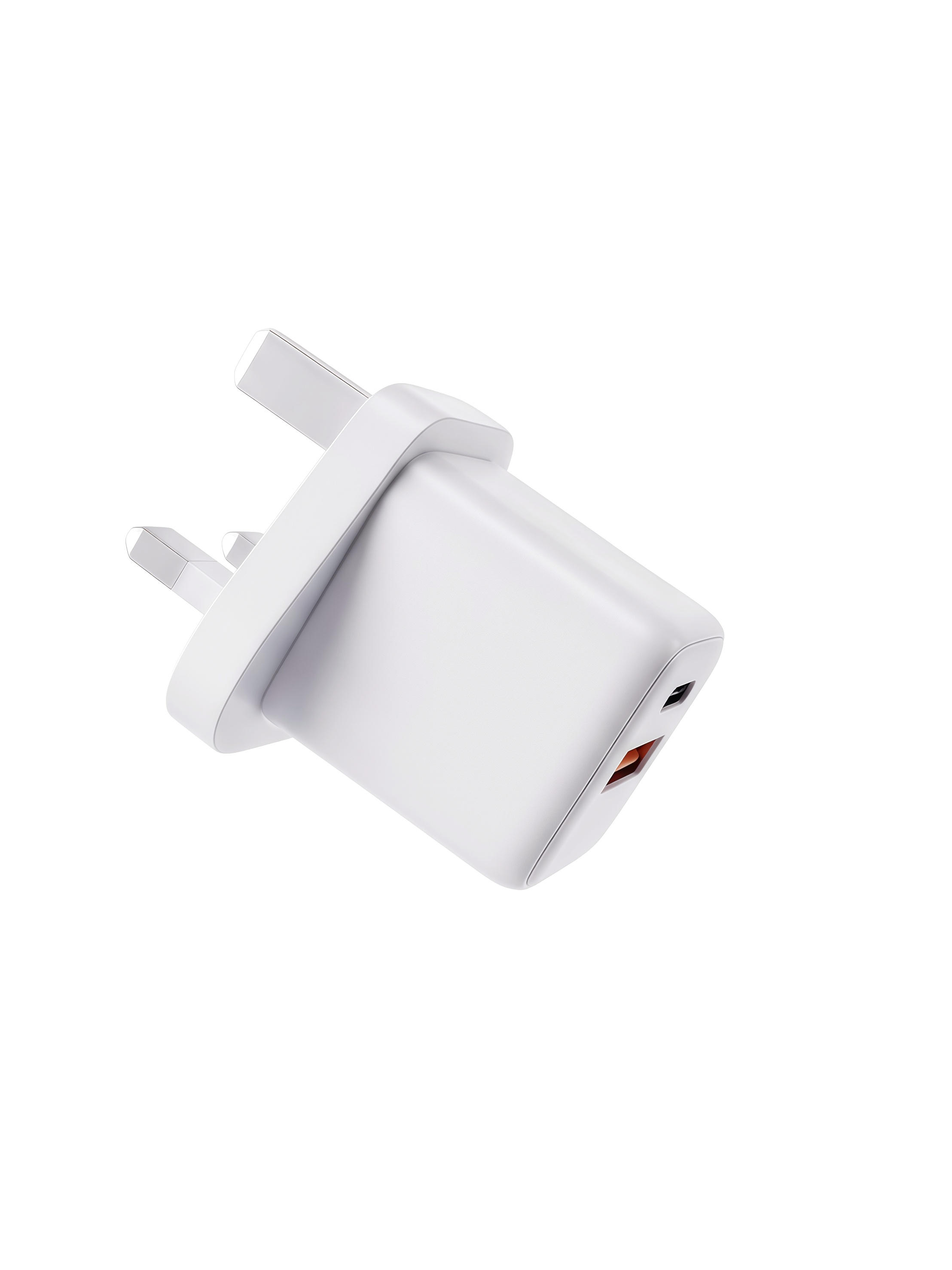

45W UK Plug Flame-Retardant PC A+C

Model: GSWC45WAC01
Input: AC 100-240V 50/60Hz 1.2A
Output C: 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A(45W)
Output A: 5V3A, 9V2A, 12V1.5A 18W QC3.0

GS20WC01 20W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS20WC01_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 20W
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

GS20WC01_EU

GS20WC 20W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS20WC_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 20W
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

GS20WC_EU

GS25W02 25W GaN Fast Charger (USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GS25W02_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.08 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C + USB-A Output: 5 V / 3 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 25W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.08 A
Certification: CE, RoHS, FCC, ERP, Anatel
USB-C + USB-A Output: 5 V / 3 A

GS25W02_EU

GS25W03 25W GaN Fast Charger (USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GS25W03_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.08 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C + USB-A Output: 5 V / 3 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 25W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.08 A
Certification: CE, RoHS, FCC, ERP, Anatel
USB-C + USB-A Output: 5 V / 3 A

GS25W03_EU

GS30W2C1A 30W GaN Fast Charger (2×USB-C + USB-A, UK Plug)

Type: GaN Fast Wall Charger
Model: GS30W2C1A_UK
Input: AC 110-240 V, 50/60 Hz, 0.7 A max
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A
USB-C1 PPS: 5-11 V / 3 A; 5-16 V / 2 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A
USB-C2 PPS: 5-11 V / 3 A; 5-16 V / 2 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 + USB-C2 + USB-A Output: 5 V / 3 A

Input: AC 110-240 V, 50/60 Hz, 0.7 A max
Max Power: 30W
USB-C1 PPS: 5-11 V / 3 A; 5-16 V / 2 A
USB-C2 PPS: 5-11 V / 3 A; 5-16 V / 2 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A
USB-C1 + USB-C2 + USB-A Output: 5 V / 3 A

GS30W2C1A_UK

GS30WC 30W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS30WC_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.5 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 30W
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.5 A
Certification: CE, RoHS, FCC, ERP, Anatel

GS30WC_EU

GS35WAC02 35W GaN Fast Charger (USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GS35WAC02_EU
Description: 35 W, USB-A + USB-C
Input: AC 110-240 V, 50/60 Hz, 1.0 A
USB-A Output: 5 V / 3 A; 9 V / 2.2 A; 12 V / 1.5 A (max)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.9 A; 15 V / 2.3 A; 20 V / 1.75 A (max)
PPS: 5-11 V / 4.5 A (35 W max)
USB-C + USB-A Output: 5 V / 3 A (max)
Certification: CE, RoHS, FCC, Anatel

PPS: 5-11 V / 4.5 A (35 W max)
Input: AC 110-240 V, 50/60 Hz, 1.0 A
Max Power: 35W
USB-A Output: 5 V / 3 A; 9 V / 2.2 A; 12 V / 1.5 A (max)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.9 A; 15 V / 2.3 A; 20 V / 1.75 A (max)
Certification: CE, RoHS, FCC, Anatel
USB-C + USB-A Output: 5 V / 3 A (max)

GS35WAC02_EU

GS35WAC 35W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS35WAC_EU
Input: AC 100-240 V, 50/60 Hz, 1 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 1 A
Max Power: 35W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC, ERP, Anatel

GS35WAC_EU

GS35WC 35W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS35WC_EU
Input: AC 100-240 V, 50/60 Hz, 1 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC

Input: AC 100-240 V, 50/60 Hz, 1 A
Max Power: 35W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC

GS35WC_EU

GS40W18 40W GaN Fast Charger (USB-C PD, EU Plug)

Type: GaN Fast Wall Charger
Model: GS40W18_EU
Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A

Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Max Power: 40W
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A

GS40W18_EU

GS40WC 40W GaN Fast Charger (USB-C PD, EU Plug)

Type: GaN Fast Wall Charger
Model: GS40WC_EU
Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A
Certification: CE, FCC

Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Max Power: 40W
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Certification: CE, FCC
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A

GS40WC_EU

GS40WC 40W GaN Fast Charger (USB-C PD, UK Plug)

Type: GaN Fast Wall Charger
Model: GS40WC_UK
Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A
Certification: CE, FCC

Input: AC 100-240 V, 50-60 Hz, 1.5 A
Protocol: USB PD
Max Power: 40W
Output (AVS): 15.0-20.0 V / 2.0 A [3.0 A DPS]; 9.0-15.0 V / 2.67 A [3.0 A DPS]
Certification: CE, FCC
Output (fixed): 9.0 V / 3.0 A; 5.0 V / 3.0 A

GS40WC_UK

GS45WAC 45W GaN Fast Charger (USB-C + USB-A, UK Plug, White)

Type: GaN Fast Wall Charger
Model: GS45WAC_UK
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A (18 W, QC 3.0)
Color: White

Color: White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 45W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A (18 W, QC 3.0)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)

GS45WAC_UK

GS45WAC 45W GaN Fast Charger (USB-C + USB-A, US Plug, White)

Type: GaN Fast Wall Charger
Model: GS45WAC_US
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A (18 W, QC 3.0)
Color: White

Color: White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 45W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A (18 W, QC 3.0)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)

GS45WAC_US

GS45WC02 45W GaN Fast Charger (USB-C, UK Plug, White / Blue / Black / Orange)

Type: GaN Fast Wall Charger
Model: GS45WC02_UK
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)
Color: White, Blue, Black, Orange

Color: White, Blue, Black, Orange
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 45W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)

GS45WC02_UK

GS45WC03 45W GaN Fast Charger (USB-C, UK Plug, White / Blue / Black / Orange)

Type: GaN Fast Wall Charger
Model: GS45WC03_UK
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)
Color: White, Blue, Black, Orange

Color: White, Blue, Black, Orange
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 45W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W)

GS45WC03_UK

GS45WC 45W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GS45WC_EU
Description: 45 W PD charger, 1 x USB-C
Input: AC 110-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (max)
PPS: 5-20 V / 6 A (45 W max)
Certification: CE, RoHS, FCC, Anatel

PPS: 5-20 V / 6 A (45 W max)
Input: AC 110-240 V, 50/60 Hz, 1.5 A
Max Power: 45W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (max)
Certification: CE, RoHS, FCC, Anatel

GS45WC_EU

GS60WC 60W GaN Fast Charger (USB-C, UK Plug)

Type: GaN Fast Wall Charger
Model: GS60WC_UK
Input: AC 100-240 V, 50/60 Hz, 2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3 A (60 W max)
PPS: 5-21 V / 3 A (63 W max)

PPS: 5-21 V / 3 A (63 W max)
Input: AC 100-240 V, 50/60 Hz, 2 A
Max Power: 60W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3 A (60 W max)

GS60WC_UK

GSG30W 30W GaN Fast Charger (USB-C + USB-A, UK Plug)

Type: GaN Fast Wall Charger
Model: GSG30W_UK
Input: AC 100-240 V, 50/60 Hz, 1 A max
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W)
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 1.5 A (18 W)
USB-C + USB-A Output: 5 V / 3 A

Input: AC 100-240 V, 50/60 Hz, 1 A max
Max Power: 30W
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 1.5 A (18 W)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W)
USB-C + USB-A Output: 5 V / 3 A

GSG30W_UK

GSG45W 45W GaN Fast Charger (USB-C + USB-A, UK Plug)

Type: GaN Fast Wall Charger
Model: GSG45W_UK
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C + USB-A Output: 30 W + 15 W

Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 45W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A
USB-C + USB-A Output: 30 W + 15 W

GSG45W_UK

GSG65W 65W GaN Fast Charger (USB-C + USB-A, UK Plug)

Type: GaN Fast Wall Charger
Model: GSG65W_UK
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C1 PPS: 3.3-11 V / 5 A
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 20 V / 2.25 A
USB-C1 + USB-A Output: 45 W + 18 W
Total Output: 65 W max

Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 65W
USB-C1 PPS: 3.3-11 V / 5 A
Total Output: 65 W max
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 20 V / 2.25 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C1 + USB-A Output: 45 W + 18 W

GSG65W_UK

GSGaN18 65W GaN Fast Charger (2×USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GSGaN18_EU
Input: AC 110-240 V, 50/60 Hz, 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3.0 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3.0 A; 15 V / 3 A; 20 V / 3.25 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-A Output: 45 W + 18 W

Input: AC 110-240 V, 50/60 Hz, 1.5 A
Max Power: 65W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3.0 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3.0 A; 15 V / 3 A; 20 V / 3.25 A
USB-C1 + USB-A Output: 45 W + 18 W
USB-C1 + USB-C2 Output: 45 W + 20 W

GSGaN18_EU

GSGaN18AC 45W GaN Fast Charger (USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GSGaN18AC_EU
Input: AC 110-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
PPS: 5-11 V / 3 A; 5-21 V / 2.25 A
USB-A + USB-C Output: 10 W + 30 W

PPS: 5-11 V / 3 A; 5-21 V / 2.25 A
Input: AC 110-240 V, 50/60 Hz, 1.5 A
Max Power: 45W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A
USB-A + USB-C Output: 10 W + 30 W

GSGaN18AC_EU

GSGaN65W02 65W GaN Fast Charger (2×USB-C + USB-A, IN Plug)

Type: GaN Fast Wall Charger
Model: GSGaN65W02_IN
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C1 PPS: 3.3-11 V / 5 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 PPS: 3.3-11 V / 5 A
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 20 V / 2.25 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + (USB-C2 + USB-A) Output: 45 W + 15 W
Total Output: 65 W max

Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 65W
USB-C1 PPS: 3.3-11 V / 5 A
USB-C2 PPS: 3.3-11 V / 5 A
Total Output: 65 W max
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 20 V / 2.25 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + (USB-C2 + USB-A) Output: 45 W + 15 W

GSGaN65W02_IN

GSGaN65W 65W GaN Fast Charger (2×USB-C + USB-A, Black)

Type: GaN Fast Wall Charger
Model: GSGaN65W_EU_Black
Input: AC 110-240 V, 50/60 Hz, 1.2 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + USB-C2 + USB-A Output: 45 W + 7.5 W + 7.5 W

Input: AC 110-240 V, 50/60 Hz, 1.2 A
Max Power: 65W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-C2 + USB-A Output: 45 W + 7.5 W + 7.5 W

GSGaN65W_EU_Black

GSGaN65W 65W GaN Fast Charger (2×USB-C + USB-A, White)

Type: GaN Fast Wall Charger
Model: GSGaN65W_EU_White
Input: AC 110-240 V, 50/60 Hz, 1.2 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + USB-C2 + USB-A Output: 45 W + 7.5 W + 7.5 W

Input: AC 110-240 V, 50/60 Hz, 1.2 A
Max Power: 65W
USB-A Output: 5 V / 3 A; 9 V / 2 A; 12 V / 1.5 A
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
USB-C2 Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
USB-C1 + USB-A Output: 45 W + 18 W
USB-C2 + USB-A Output: 5 V / 3 A
USB-C1 + USB-C2 Output: 45 W + 20 W
USB-C1 + USB-C2 + USB-A Output: 45 W + 7.5 W + 7.5 W

GSGaN65W_EU_White

GSMINI30W 30W GaN Fast Charger (USB-C, EU Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI30W_EU
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 30W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI30W_EU

GSMINI30W 30W GaN Fast Charger (USB-C, US Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI30W_US
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 30W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.5 A; 15 V / 2 A; 20 V / 1.5 A (30 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI30W_US

GSMINI35W 35W GaN Fast Charger (USB-C, EU Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI35W_EU
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 35W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI35W_EU

GSMINI35W 35W GaN Fast Charger (USB-C, US Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI35W_US
Input: AC 100-240 V, 50/60 Hz, 1.2 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.2 A
Max Power: 35W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI35W_US

GSMINI45W 45W GaN Fast Charger (USB-C, EU Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI45W_EU
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 45W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI45W_EU

GSMINI45W 45W GaN Fast Charger (USB-C, US Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI45W_US
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 45W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A (45 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI45W_US

GSMINI65W 65W GaN Fast Charger (USB-C, EU Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI65W_EU
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 65W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI65W_EU

GSMINI65W 65W GaN Fast Charger (USB-C, US Plug, Black / White)

Type: GaN Fast Wall Charger
Model: GSMINI65W_US
Input: AC 100-240 V, 50/60 Hz, 1.5 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
PPS: 3.3-11 V / 3 A
Certification: CE, RoHS, FCC
Color: Black, White
Certification: CE, RoHS, FCC, Anatel

PPS: 3.3-11 V / 3 A
Color: Black, White
Input: AC 100-240 V, 50/60 Hz, 1.5 A
Max Power: 65W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Certification: CE, RoHS, FCC, Anatel

GSMINI65W_US

GSTHD01 20W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GSTHD01_EU
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 20W
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

GSTHD01_EU

GSTHD01 20W GaN Fast Charger (USB-C, UK Plug)

Type: GaN Fast Wall Charger
Model: GSTHD01_UK
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 20W
USB-C Output: 5 V / 3 A; 9 V / 2.22 A; 12 V / 1.67 A
Certification: CE, RoHS, FCC, ERP, Anatel

GSTHD01_UK

GSTHD02 35W GaN Fast Charger (USB-C, EU Plug)

Type: GaN Fast Wall Charger
Model: GSTHD02_EU
Input: AC 100-240 V, 50/60 Hz, 1 A
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 1 A
Max Power: 35W
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.91 A; 15 V / 2.33 A; 20 V / 1.75 A (35 W)
Certification: CE, RoHS, FCC, ERP, Anatel

GSTHD02_EU

GSTHD02 30W GaN Fast Charger (USB-C, UK Plug)

Type: GaN Fast Wall Charger
Model: GSTHD02_UK
Input: AC 100-240 V, 50/60 Hz, 0.8 A
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.5 A
Certification: CE, RoHS, FCC, ERP, Anatel

Input: AC 100-240 V, 50/60 Hz, 0.8 A
Max Power: 30W
USB-C Output: 5 V / 3 A; 9 V / 2.77 A; 12 V / 2.5 A
Certification: CE, RoHS, FCC, ERP, Anatel

GSTHD02_UK

GSUT65W1C 65W GaN Fast Charger (USB-C, US Plug)

Type: GaN Fast Wall Charger
Model: GSUT65W1C_US
Dimensions: 84 x 45.5 x 14.6 mm
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Certification: CCC, CE, FCC, UL, UKCA, CE-LVD, RoHS
Efficiency: 93%

Input: AC 100-240 V, 50/60 Hz, 1.5 A max
Max Power: 65W
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Dimensions: 84 x 45.5 x 14.6 mm
Efficiency: 93%
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Certification: CCC, CE, FCC, UL, UKCA, CE-LVD, RoHS

GSUT65W1C_US

GSUT65W2C 65W GaN Fast Charger (2×USB-C, US Plug)

Type: GaN Fast Wall Charger
Model: GSUT65W2C_US
Dimensions: 84 x 45.5 x 14.6 mm
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-C1 + USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)
PPS: 5-20 V / 3 A
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Certification: CCC, CE, FCC, UL, UKCA, CE-LVD, RoHS
Efficiency: 93%

PPS: 5-20 V / 3 A
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
Max Power: 65W
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Dimensions: 84 x 45.5 x 14.6 mm
Efficiency: 93%
Certification: CCC, CE, FCC, UL, UKCA, CE-LVD, RoHS
USB-C1 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-C1 + USB-C2 Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)

GSUT65W2C_US

GSUT65WAC 65W GaN Fast Charger (USB-C + USB-A, EU Plug)

Type: GaN Fast Wall Charger
Model: GSUT65WAC_EU
Dimensions: 84 x 45.5 x 14.6 mm
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.25 A; 20 V / 1.35 A (27 W max)
USB-C + USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)
PPS: 5-20 V / 3 A
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Certification: CCC, FCC, CE, UL, UKCA, CE-LVD, RoHS
Efficiency: 93%

PPS: 5-20 V / 3 A
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
Max Power: 65W
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Dimensions: 84 x 45.5 x 14.6 mm
Efficiency: 93%
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.25 A; 20 V / 1.35 A (27 W max)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Certification: CCC, FCC, CE, UL, UKCA, CE-LVD, RoHS
USB-C + USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)

GSUT65WAC_EU

GSUT65WAC 65W GaN Fast Charger (USB-C + USB-A, UK Plug)

Type: GaN Fast Wall Charger
Model: GSUT65WAC_UK
Dimensions: 84 x 45.5 x 14.6 mm
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.25 A; 20 V / 1.35 A (27 W max)
USB-C + USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)
PPS: 5-20 V / 3 A
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Certification: CCC, FCC, CE, UL, UKCA, CE-LVD, RoHS
Efficiency: 93%

PPS: 5-20 V / 3 A
Input: AC 100-240 V, 50/60 Hz, 1.5 A max
Max Power: 65W
Protocols: PD 2.0, PD 3.0, QC 2.0, QC 3.0, SCP, AFC, FCP, Apple 2.4 A
Dimensions: 84 x 45.5 x 14.6 mm
Efficiency: 93%
USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 2.25 A; 20 V / 1.35 A (27 W max)
USB-C Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 3.25 A (65 W max)
Certification: CCC, FCC, CE, UL, UKCA, CE-LVD, RoHS
USB-C + USB-A Output: 5 V / 3 A; 9 V / 3 A; 12 V / 3 A; 15 V / 3 A; 20 V / 2.25 A + 5 V / 2.4 A (max)

GSUT65WAC_UK
